Description

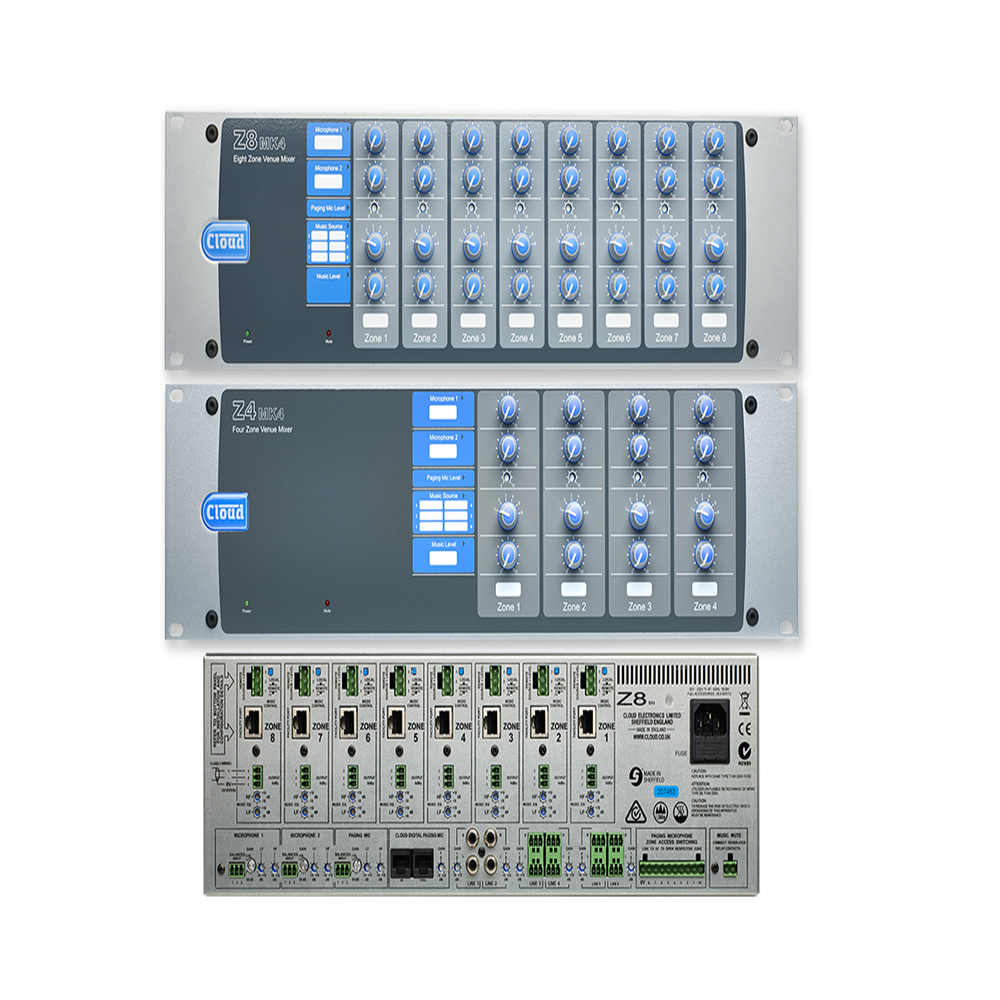

The new MK4 versions have been developed directly as a result of listening to existing installers and system integrators and adding features to improve this already popular model. Whilst the
familiar front-panel remains almost untouched, the back-panel of the MK4 models have been
re-engineered with a number of improvements. XLR-microphone inputs are replaced by balanced phoenix style connections for microphone 1-2 and analogue paging microphone, a new Digital Paging Interface with gain control has been added and allows direct connection via RJ-45 of all Cloud’s Paging Microphones and, if required, a link to multiple Zone Mixers.

Music source input connections have been upgraded to two RCA phono connections and four
balanced / unbalanced phoenix style connections. An brand new SMPS has been incorporated in the new designs to allow for many more Cloud LM-2 Active Input Plates to be used.

A music-mute contact (NO/NC) connection, standard on all Cloud Zone-Mixer and Mixer-Amplifier products is included and optional connection of analogue remote volume / source controls per zone are also included.
